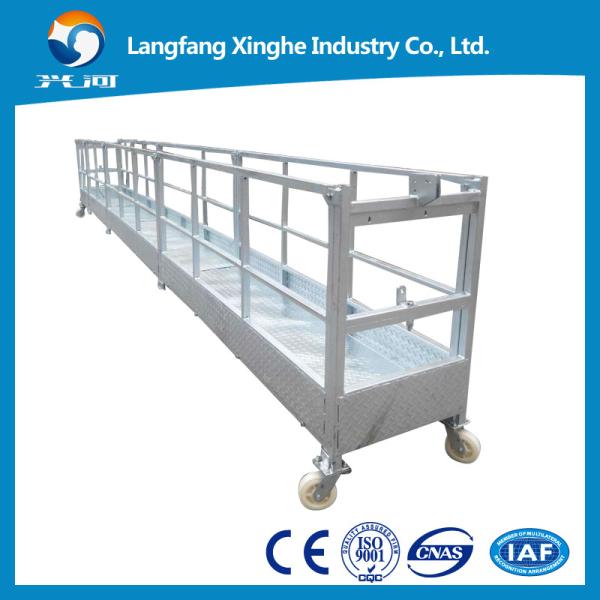

800kg suspended platform / zlp800 electric scaffolding suspended / suspended cradle
Powered suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
The welding of the support structure of the platform is made of quality steel profiles
The connection of the individual parts of the structure in each unit is made with nuts and bolts.
The powered suspended platform is equipped with wheels for easy movement around the construction site.
ZLP Suspended platform / Cradle / Gondola
Specification :
1.Type: zlp 630 & zlp800 & zlp 1000
2.Surface finished: Hot galvanized & aluminum alloy
3.Lifting height: 100m , 300m maximum
4.HS Code: 84289090
5.Certificate: ISO9001 & CE
6.Warranty : The whole machinery is for one years, some main components are 6 years
7.We can also customize for you
Technical parameters:
|
Model |
zlp630 |
zlp800 |
zlp1000 |
|
Material of platform |
Steel & Aluminum alloy |
|
Rate loading capacity |
630kg |
800kg |
1000kg |
|
Length of platform |
6m |
7.5m |
7.5 |
|
Safety lock |
LS30 |
|
Hoist Model |
LTD63 |
LTD80 |
LTD80(S dirve ) |
|
Loading quantity (20 gp) |
9 |
8 |
7 |
|
Counter weight |
25kg*40 |
25kg*40 |
25kg*40 |
|
Diameter of wire rope |
8.3mm |
8.6mm |
8.6mm |
|
Voltage |
220v/380v/415v 50/60hz 3 phase or single phase |
Parts List of Complete Suspended Platform / Cradle / Gondola
|
NO. |
Parts Name |
Quantity |
Description |
|
1 |
Working platform |
3 |
The length of work platform include 1m,2m,3m,1.5m,2.5m
The work platform can be made in any combination based on customer's requirement .
|
|
2 |
Hoist |
2 |
LTD 63 & LTD80 Surface finished : hot galvanized |
|
3 |
Safety lock |
2 |
LS30 |
|
4 |
Suspension machanism |
2 |
Surface finished : hot galvanized |
|
5 |
Control panel |
1 |
Along with hoist |
|
6 |
Limit position switch |
2 |
|
|
7 |
Limit position plate |
2 |
|
|
8 |
Wire rope |
100m*4 |
4*31SW- FC- 8.3 &8.6&9.1 |
|
9 |
Electric cable |
1 bundle |
3*2.5+2*1.5YC-5 |
|
10 |
Counter weight |
25kg*40 |
three types: cement & cement with steel cover & iron-casting |
|
11 |
Heavy hammer |
4 |
|
|
12 |
Life rope |
100m*1 |
Selective |
|
|
